Rear BBK – BRACKET KIT (JHM) for 356mm C7-C7.5 S6-S7-RS7 rotors to fit B8-B8.5 S4-S5-Q5-SQ5 – C7-C7.5 A6-A7

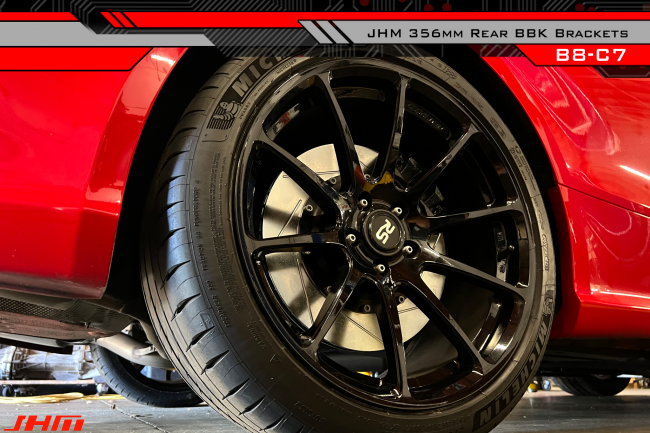

Introducing the JHM Rear 356mm Rotor Big Brake Bracket Kit for the B8-B8.5 S4-S5-Q5-SQ5 and C7-C7.5 A6-A7

Upgrade your vehicle’s braking performance with the all-new JHM Rear 356mm Rotor Big Brake Bracket Kit. This kit allows you to go from a 330mm to a 356mm rotor size, providing a significant improvement in stopping power. Compatible with our JHM C7 S6-S7-RS7 lightweight rear rotors, OEM C7 S6-S7 rear rotors (4H0615601P), OEM C7 RS7 rear flower rotors (4G8615601E) or any rear C7 S6-S7-RS7 fitting rotors, this kit offers versatility and flexibility to suit your specific needs.

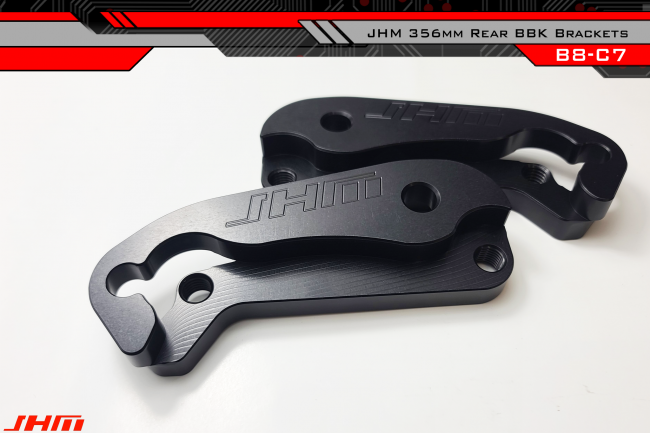

Crafted from strong and lightweight 7075-T6 aluminum, the brackets provide exceptional durability and performance. Compared to standard billet 6061 aluminum, 7075-T6 offers nearly double the strength, ensuring long-lasting reliability under extreme braking conditions.

Please note that while bending has not been required so far, it’s important to be aware of the tight clearance. In some cases, slight bending of the brake line may be necessary when using certain aftermarket lines.

Features:

• Constructed of Billet 7075 Aluminum

• Direct Bolt-on Fitment

• Allows for a Larger 356mm Rotor for Greater Stopping Power

• MADE IN THE USA

 Installation Instructions found HERE
