IE VW & Audi 2.0T Gen 3 IS20 MQB Performance Tune | Fits MK7/MK7.5 GTI, GLI, & 8V A3

$549.00

SKU: IESOVN11

SHARE:

Description

IE’s performance ECU calibration for the VW/Audi MQB 2.0T Gen 3 IS20 Turbo engine fully releases the power potential without sacrificing comfort. Let your GTI, GLI, or A3 put a smile on your face, and experience the power and thrills from your new tune as it transforms your car into a true turbocharged beast.

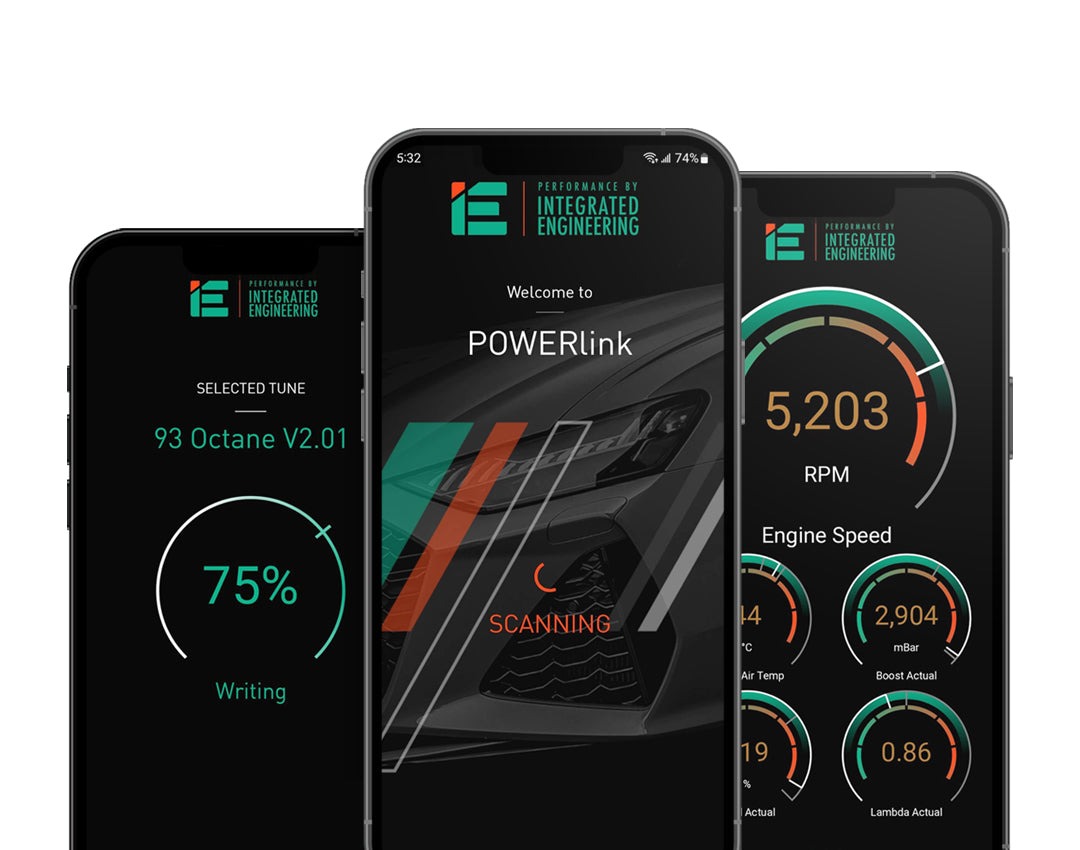

APPLE & ANDROID
MOBILE APP

BLUETOOTH TUNING

UP TO
462HP & 456TQ

POWER YOU CAN FEEL

INCLUDES
FUEL OPTIMIZED

91, 93 104, & ETHANOL

LEADING FEATURES

  • Horsepower & torque gains maximized
  • Inlcudes Apple & Android mobile flashing app
  • Stock boost control optimized for all conditions
  • 91, 93, & 104 pump octanes available (95, 98, & 108 RON)
  • Optional TrueFlex adapts from 91 pump all the way to full E85
  • Includes optional High Torque & Low Torque files
  • Rev limiter increased to 7000 RPM (with DSG flash)
  • Brake boosting enabled for rolling launches on all stages
  • Launch control torque increased for faster launches
  • Road speed limiters removed
  • Exhaust Crackle feature available for Stage 2
  • Engineered for all climates and elevations
  • Direct port OBDII at-home flashing
  • Easy octane switching takes only minutes
  • Upgrade stages to match hardware upgrades
  • Simple on/off feature toggling with POWERlink
  • Read and clear diagnostic/problem codes
  • Easy to use Data-logger

MK7 IS20 STAGE 1

IE Stage 1 ECU calibration dramatically increases performance leaving no hidden power on the table, and safely maxes out the factory IHI IS20 turbocharger’s horsepower & torque capability. Engineered to operate on entirely stock hardware and compatible with basic bolt-ons (intake, turbo inlet, intercooler).

See the performance tab for power and dyno results

MK7 IS20 STAGE 2

IE Stage 2 software is for full bolt-on stock turbo builds running an aftermarket racing downpipe. IE calibrators use advanced tuning strategies to extract additional power and account for the increased flow from an upgraded downpipe and performance hardware. The required hardware upgrades for stage 2 will increase airflow, exhaust flow, lower intake air temps, provide faster IAT recovery, and produce an overall more efficient and faster vehicle on the stock IHI IS20 turbocharger. See below for a complete list of Stage 2 requirements.

Upgrading from Stage 1 to Stage 2 or beyond is easy! With IE, you only pay the difference in tune cost with no extra fees. When you install the required matching hardware, follow the instructions on your IE POWERlink app to purchase the tune upgrade, and you will be blowing away the competition in minutes!

HIGH/LOW TORQUE FILES

IE High Torque ECU calibrations maximize power gains throughout the entire powerband which quickly exceeds the torque limitations of the factory DSG calibration (auto trans) or the stock clutch (manual trans) that leads to clutch slipping. Stage 1 and Stage 2 files include optional Low Torque files for vehicles with stock DSG tune or stock clutch. Both high and low torque files are included and can be switched between as often as you like.

High Torque files require the additional purchase of a DSG transmission tune or clutch upgrade.


FEATURES & OPTIONS

TRUEFLEX ETHANOL

E85 fuel unlocks the most performance potential from our ECU tunes for your GTI or A3 Gen 3 engine. Ethanol contains tons of oxygen, burns cooler, and has a high resistance to knock. This provides more horsepower and torque than running conventional gasoline and is more readily available (in most states) and less expensive than race gas. IE TrueFlex calibrations take this a step further and allow for 91 octane all the way up to full E85 or anything in between on one tune without the need to reflash! TrueFlex is an included option with all stages.

Click the TrueFlex tab above for full features and fitment restrictions

INCREASED RPM

To take advantage of the new larger power band, factory rev limits have been raised to 7000RPM in all stages. On DSG equipped cars, the transmission will shift slightly before the new engine RPM (6900RPM).

DSG Tune is required to unlock higher RPM.

EXHAUST CRACKLE

IE Exhaust Crackle feature adds an addicitng motorsport-inspired crackle sound to your exhaust note when you let off the accelerator or downshift above 3K RPM. This feature is active in Sport Mode or Sport Manual Mode so you can enjoy this feature when you want, and stay civil when you need it.

For the most aggressive pops and bangs an aftermarket catback system is recommended.

BRAKE BOOST

Brake Boosting provides a competitive edge in a roll racing scenario. While maintaining a constant speed and throttle position, apply brake pressure with the left foot to build boost at speed resulting in a rolling launch when brake pressure is released.


HARDWARE GUIDE

PART UPGRADE STAGE 1 STAGE 2

DSG TUNE OR CLUTCH UPGRADE

REQUIRED FOR HIGH TORQUE FILES

REQUIRED

AIR INTAKE

HIGHLY RECOMMENDED

REQUIRED

INTERCOOLER

OPTIONAL

HIGHLY RECOMMENDED

TURBO INLET PIPE

OPTIONAL

HIGHLY RECOMMENDED

CATBACK EXHAUST

OPTIONAL

OPTIONAL

HPFP UPGRADE

REQUIRED FOR TRUEFLEX ONLY

REQUIRED FOR TRUEFLEX ONLY

TRUEFLEX SENSOR HARNESS KIT

REQUIRED FOR TRUEFLEX ONLY

REQUIRED FOR TRUEFLEX ONLY

DOWNPIPE

Not Compatible With Stage 1

REQUIRED

TURBO UPGRADE

Not Compatible With Stage 1

Not Compatible With Stage 2

DOWNPIPE NOTICE: BY PURCHASING A MOTORSPORT/RACING PRODUCT (“PRODUCT”), YOU REPRESENT THAT YOU UNDERSTAND AND AGREE THAT: THE PRODUCT IS NOT DESIGNED TO MEET ANY APPLICABLE EMISSIONS STANDARDS, WHETHER IN THE USA OR OTHERWISE, THE PRODUCT IS NOT C.A.R.B. COMPLIANT, AND THAT THE PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA, USA NOR ANY OTHER JURISDICTION WHERE THE SALE OR USE IS PROHIBITED BY LAW. INTEGRATED ENGINEERING, LLC MAKES NO REPRESENTATIONS, WARRANTIES, OR CLAIMS THAT THIS PRODUCT COMPLIES WITH ANY APPLICABLE EMISSIONS LAWS AND EXPRESSLY DISCLAIMS ANY AND ALL SUCH REPRESENTATIONS, WARRANTIES, AND CLAIMS, WHETHER EXPRESS OR IMPLIED. BY PURCHASING THIS PRODUCT, YOU REPRESENT, WARRANT, AND AGREE THAT IT IS YOUR RESPONSIBILITY TO INFORM YOURSELF OF ANY LAWS OR REGULATIONS THAT MAY APPLY TO YOUR PURCHASE AND/OR USE OF THE PRODUCT.

STAGE 1 & 2 FITMENT GUIDE
