High Performance Radiator (CSF) for B8-C7 S4-S5 A6-A7 Q5-SQ5 3.0T A4-A5 3.2L

As CSF continues to expand its VAG cooling performance catalog with more unique and world’s first options, next on the list is the ever-popular B8 Audi S4/S5 platform. Just in time for Summer, CSF is excited to announce another industry exclusive – its new High-Performance All-Aluminum Drop-in Fit Radiator upgrade (CSF #7091).

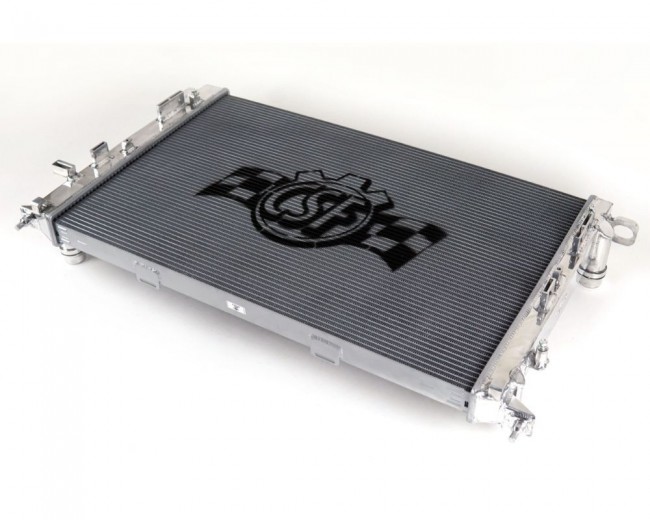

CSF’s High-Performance 2-Row Radiator is complete with precise CNC machined fittings and brackets to allow ease of installation in the complex plastic housing system. It also includes an OEM-style wire harness bracket system to secure the harness that runs across the top of the radiator.

In addition to CSF’s high-performance radiator core design, CSF has added an upgraded plate-type transmission oil cooler to the left side tank for improved transmission cooling in vehicles with automatic transmissions (comes pre-plugged for use in manual transmission vehicles).

Features:

• 2-Row 42mm High-Performance Core Featuring CSF’s B-Tube Technology
• Core Features Ultra Efficient 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• 100% All-Aluminum TIG-Welded Construction

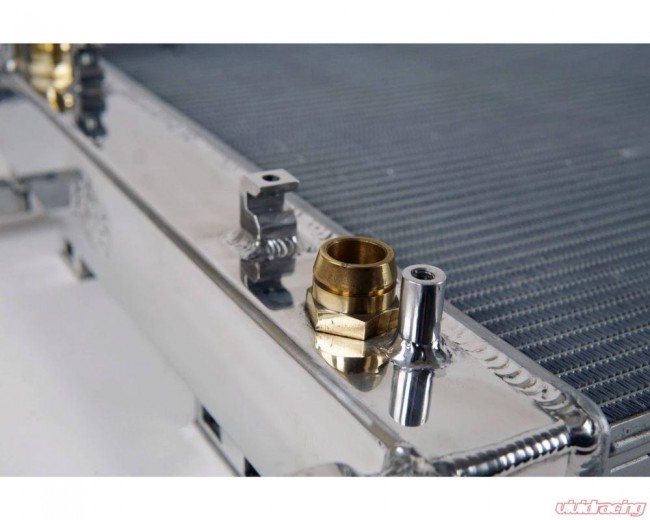

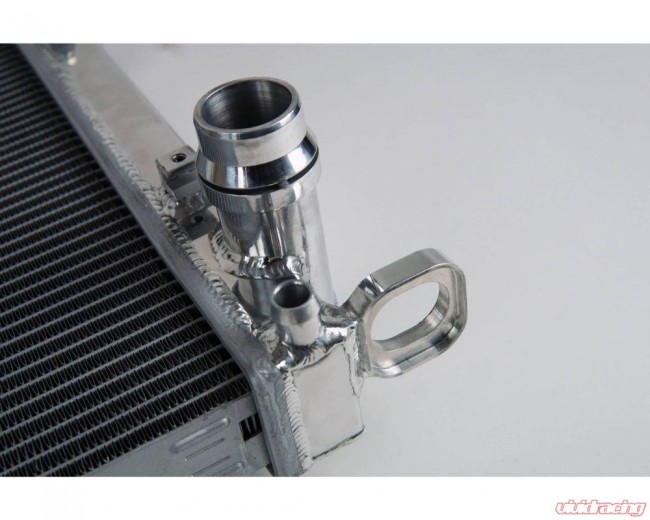

• CNC Machined Mounting Brackets and OEM Style “Quick Connect” Inlet/Outlet
• Integrated High-Performance Transmission Oil Cooler for Both Automatic and Manual Transmissions
• Integrated OEM Style Wire Harness Brackets
• True “Drop-in Fit” Requires No Modifications to Install
• Individually Leak and Pressure Tested
• 1 Hour “Mirror Finish” Hand Polish
• 2 Year Limited Warranty

Fitment:

• 2010-2016 Audi (B8) S4
• 2009-2014 Audi (B8) A4 Quattro
• 2010-2014 Audi (B8) S5
• 2008-2016 Audi (B8) A5
• 2008-2014 Audi (B8) A5 Quattro
• 2010-2013 Audi A6
• 2016 Audi A6
• 2012-2015 Audi A6 Quattro
• 2016 Audi A7
• 2012-2015 Audi A7 Quattro
• 2009-2017 Audi Q5
• 2014-2017 Audi SQ5
• 2015-2018 Porsche Macan S & GTS

OEM #

• Automatic: 8K0-121-251-AL
• Manual: 8K0-121-251-H
