Audi 2.5 TFSI Ultimate Methanol Injection Kit

$1,599.00

SHARE:

Category Tag

Description

The ONLY all inclusive and safe methanol injection kit specifically designed for the Audi 2.5 TFSI. This is specifically designed to use several advanced features of the DS1 for integration. The controller in this kit works with custom CAN bus communication, not a boost signal like other controllers on the market. This allows the ECU to be in control, and monitor the system for safety. This also allows your tuner to “set it up for you”

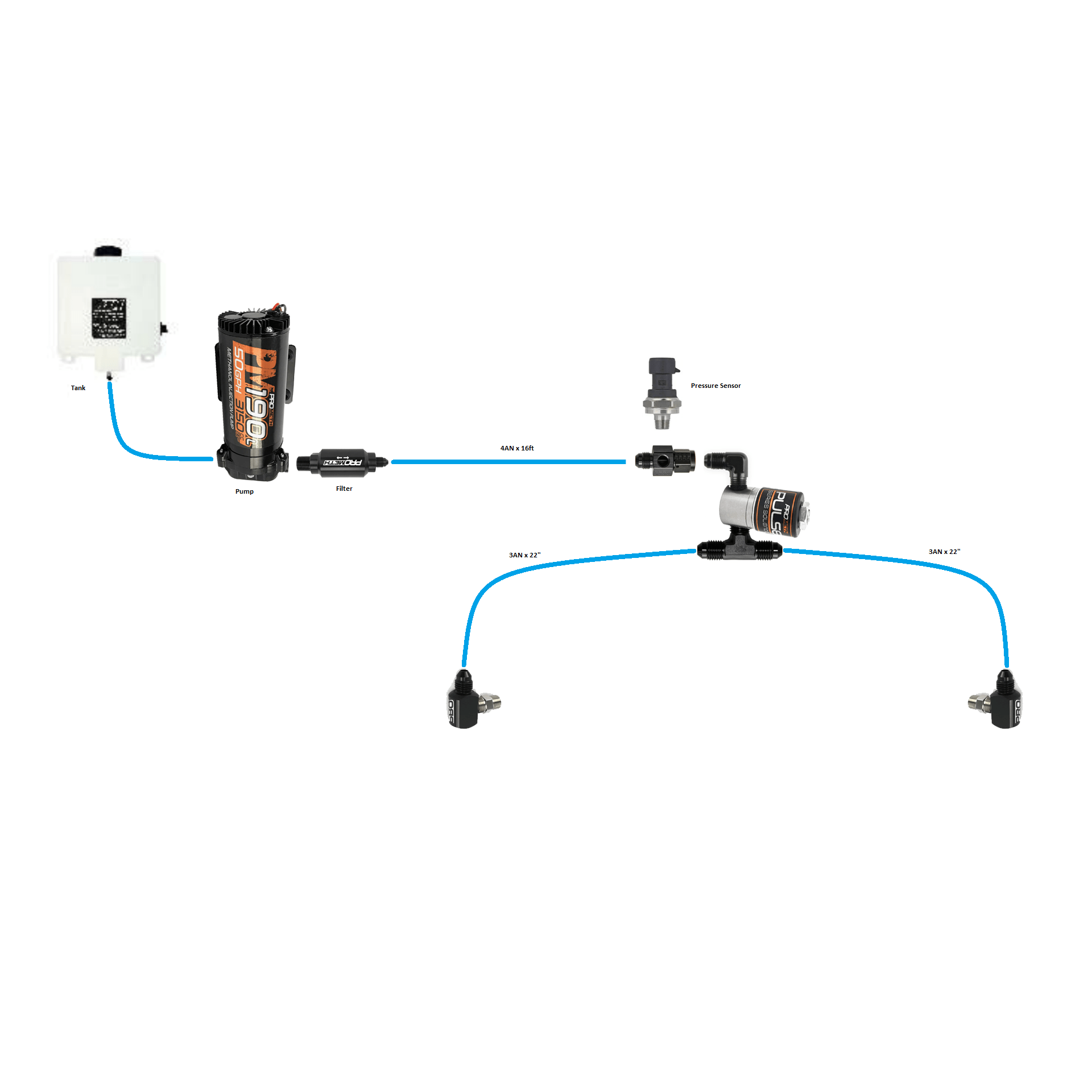

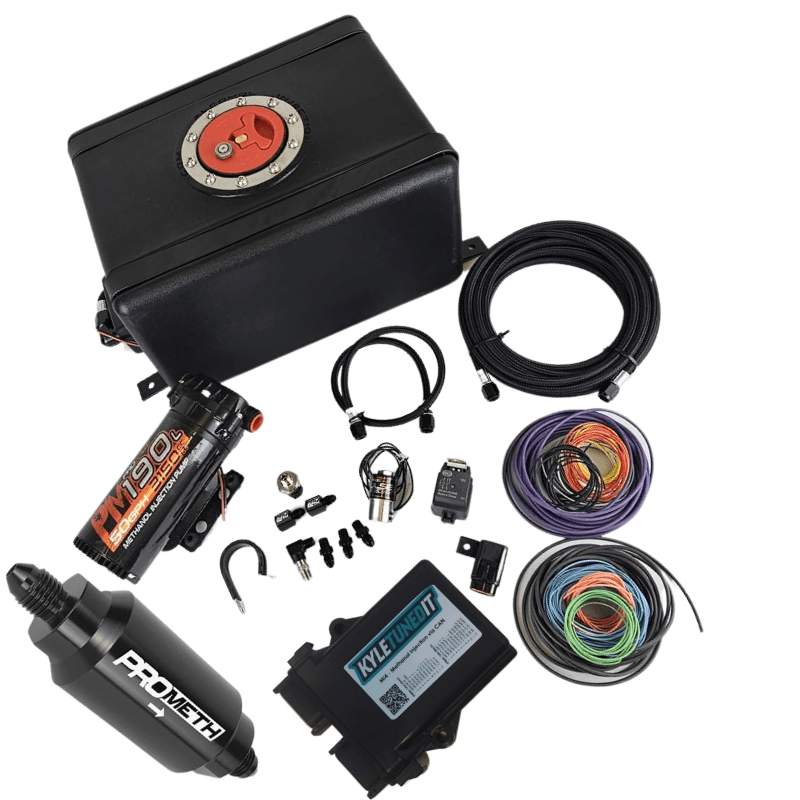

Kit Includes:

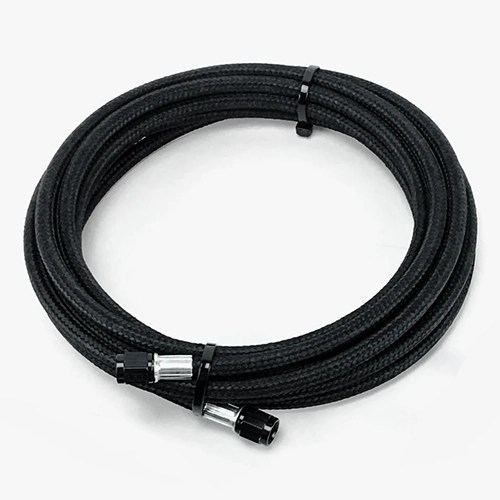

ProMETH Nozzles with adapters, Braided AN meth lines, tees & fittings – Nozzle flow rates available from 100cc/min to over 3000cc/min, you will be contacted to discuss flow requirements directly with our tuner upon purchase.

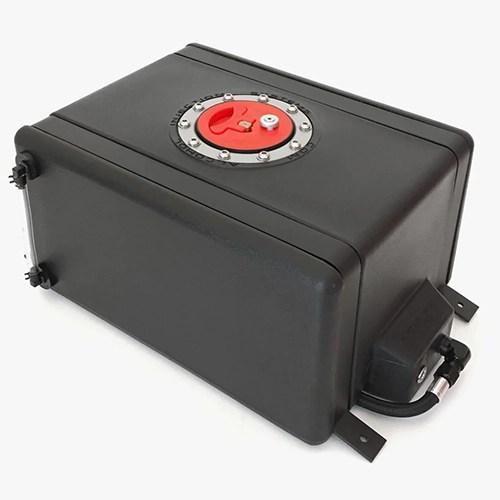

ProMETH 3 Gallon Meth Tank – Mounts in the trunk of your car.

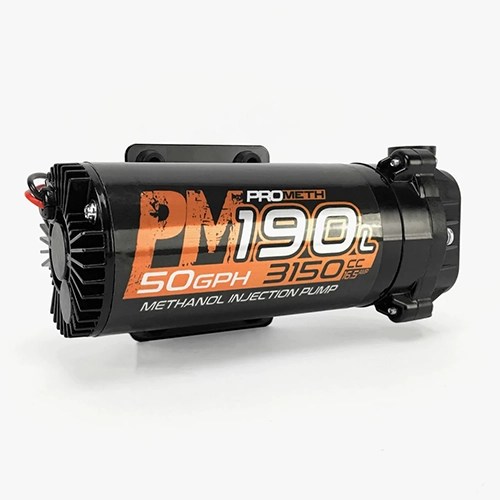

ProMETH PM190 pump – The highest flowing pump for full flow rating on the nozzles and methanol volume commonly injected on this platform

ProMETH filter – To prevent the sensitive nozzles from being clogged, the pressure sensor is able to monitor this for blockage

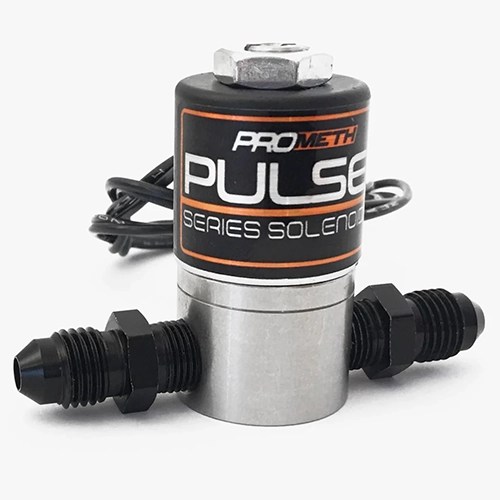

ProMETH shut off solenoid – For safety and siphoning protection

KYLETUNEDIT MI4 Methanol Injection via CAN controller – Designed for seamless integration with the DS1, this allows proper safety features along with allowing the tuner to be able to calibrate the methanol delivery, prevents “fiddling” for a safe installation

KYLETUNEDIT 300 PSI pressure sensor – This is monitored by custom maps on the DS1 and can trigger a safety Map Switch or Check Engine Light

KYLETUNEDIT Billet Aluminum Throttle Body Meth Spacer Kit – bolt on installation without ruining the parts on your engine by drilling holes.

** CAN Bus Methanol Injection Controller will need to be wired into the vehicle, instructions are provided, but this is not a plug and play installation. We provide custom tuning for this product, as it uses several very advanced features of the DS1 to work seamlessly. Instructions can be provided to other tuners on request.



Use this kit with the following additives by VP Racing Fuels

VP Racing M1 Methanol – 5 Gallon Drums, can be mixed in any ratio with distilled water

VP Racing M5 Methanol – 5 Gallon Drums, not to be mixed with water

VP Racing Speed Sauce 50/50 Water Methanol Fluid – 1 gallon jug, pre-mixed

VP Racing Speed Sauce Plus 20/80 Water Ethanol Fluid – 1 gallon jug, pre-mixed



Our advanced level tuning service is used to integrate these features into the DS1

Tag:

Additional information

Weight

20 lbs

Dimensions

20 × 13 × 13 in
