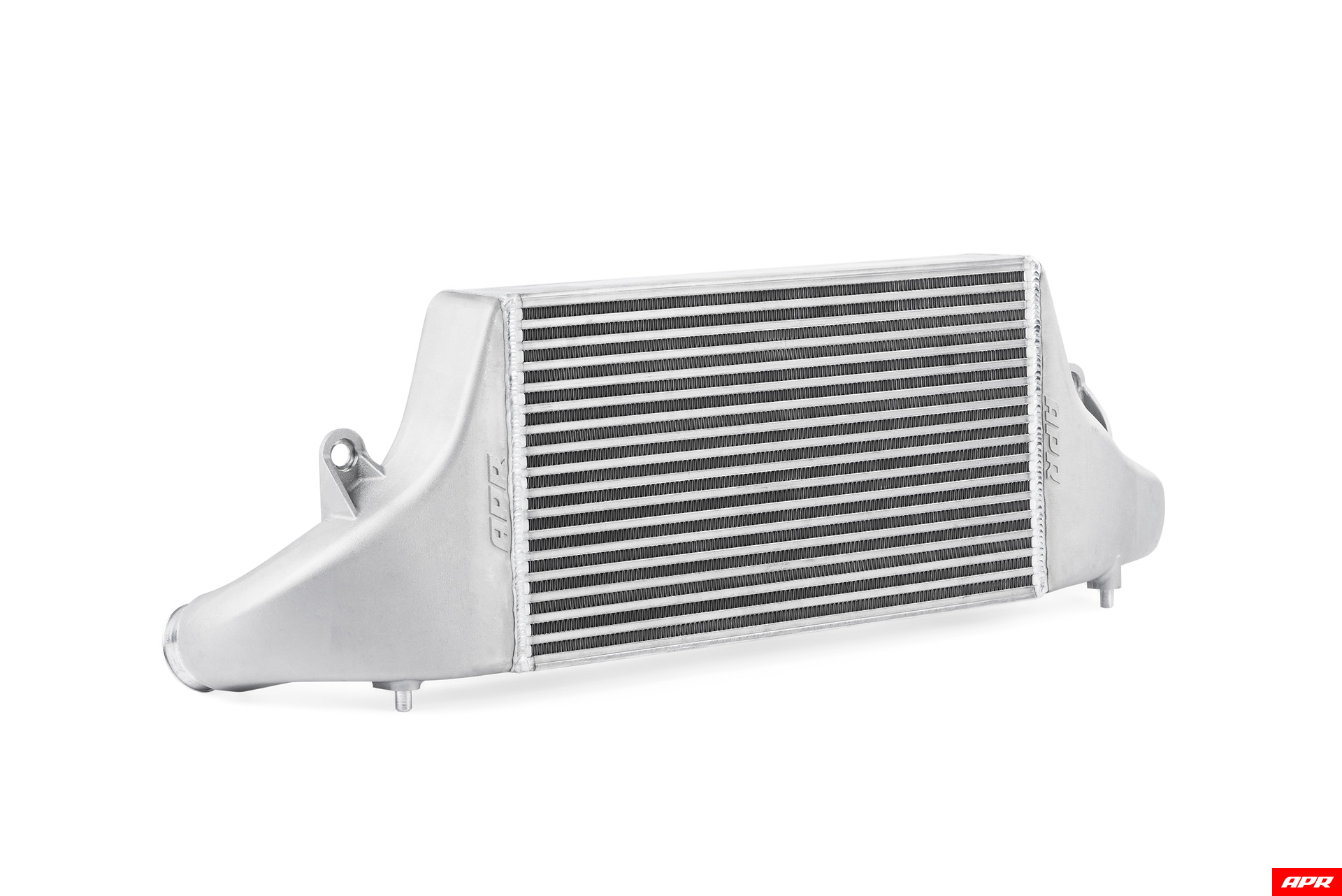

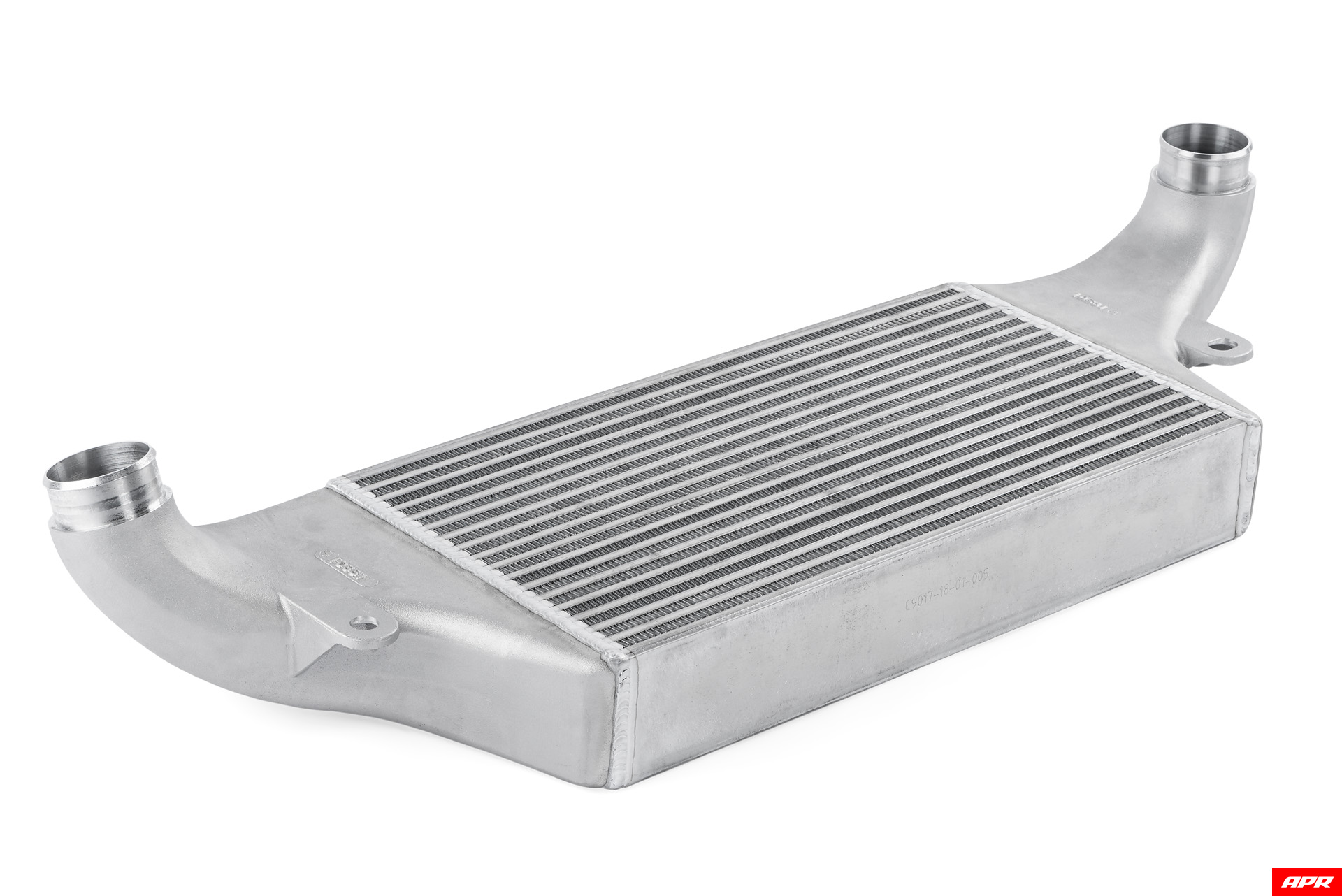

APR Intercooler System – 2.5 TFSI EVO (RS3/8V)

Quick Facts:

• Dramatically lowers intake air temp (IAT)
  Increases HP while minimizing power-robbing heat soak!
  Dynoed 26 AWHP over to the factory system (STG 1 93)!
  Effective cooling for more than double factory horsepower levels!
• Massive frontal surface area and core volume
  6.38″ x 25.33″ x 3.16″ – 161.6 in? frnt. & 510.67 in? volume – OEM
  11.7″ x 22.00″ x 3.50″ – 257.4 in? frnt. & 900.90 in? volume – APR
• Highly effective core design
  Bar-and-plate core with staggered and louvered fins.
  Rigorous testing determined core style, fin density, and size.
  Low pressure drop + highly effective cooling = high performance!
• Smooth cast end tanks
  Engineered for low turbulence/restriction and maximum flow.
  Organically shaped to promote airflow across entire core.
  Pressure tested to prevent power robbing boost leaks.
• Easy to install
  Simple plug-and-play design with no trimming or drilling necessary!
• Designed by engineers with lasers
  With the best equipment and smartest engineers, it just works!
